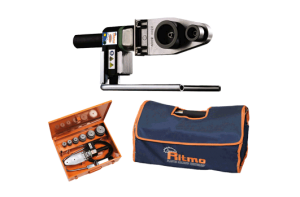

RITMO manual SOCKET welders for joining pipes and fittings, in compliance with the standards in force. They feature an aluminum heating plate and a practical, heat-insulated plastic handle. They can weld HDPE, PP, PP-R, PVDF pipes and fittings, and they’re characterized by different shapes and working ranges, suitable for different applications.

They’re available with an adjustable electronic thermoregulator (TE), or with a fixed electronic thermostat (TFE).

This new TFE control system features a new self-diagnostic device, provided with an alarm, which would alert the operator in case of anomaly; at the same time, the heating element would switch off automatically. Thanks to an algorithm PID microcontroller, combined with a platinum sensor, the temperature control system can react faster to the external temperature fluctuations, and guarantee higher reliability and longer durability.

RITMO manual SOCKET welders for joining pipes and fittings, in compliance with the standards in force. They feature an aluminum heating plate and a practical, heat-insulated plastic handle. They can weld HDPE, PP, PP-R, PVDF pipes and fittings, and they’re characterized by different shapes and working ranges, suitable for different applications.

They’re available with an adjustable electronic thermoregulator (TE), or with a fixed electronic thermostat (TFE).

This new TFE control system features a new self-diagnostic device, provided with an alarm, which would alert the operator in case of anomaly; at the same time, the heating element would switch off automatically. Thanks to an algorithm PID microcontroller, combined with a platinum sensor, the temperature control system can react faster to the external temperature fluctuations, and guarantee higher reliability and longer durability.

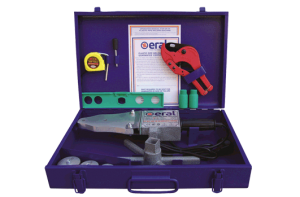

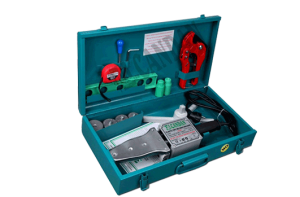

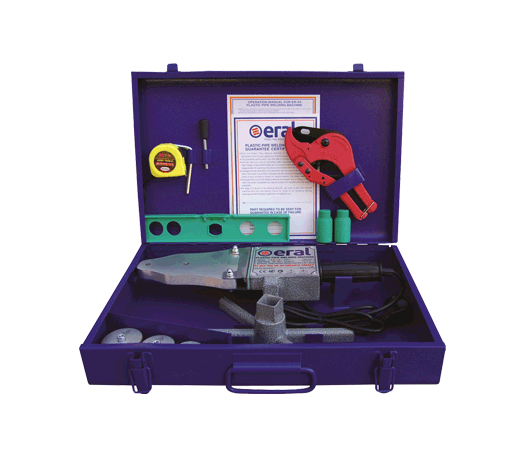

Product Name:PPR WELDING MACHINE SET ER-01 LUX
Code:ER-01 SET (LUX)
Dimension:16 – 75 mm
Installed Capacity:750+750 = 1500 Watt (Double Resistance)
Supply Voltage:220-240V
Frequence:50-60 Hz
Operating Temperature:270° C
Cable:3X1,5 mm², 200 cm cable fireproof up to 200 ° C has been used.
Thermostat regulation indicator:50-320 ° C
Resistor Material:Stainless steel
Main Supply:3 x 2.5 mm² Supply Cable
Protection Class:IP 44
Main Fuse Value:16 A (on the power connection line)
Other:- Three sockets can be simultaneously installed on the heater.
– The ON-OFF switch has been equipped with a light indicator for easier operation.
– A special aluminum floor foot with a clamp has been installed providing the ability to operate everywhere
– The welding machine set includes heads of 20,25,32,40 mm, plastic pipe shears of 16-42 mm and other apparatuses you might need for PPRC welding.
– GUARANTEED for 2 years

Established as an unlimited company under the name Ercan Pres Dokum San. In 1979, and then institutionalized changing its name to Candan Makina Yedek Parca San. ve Tic.Ltd.Sti. is a  leading brand in Turkey in its sector. Our products are mainly: PP,PPR,PPRC,PVC,Plastic, Pipe, Welding Machines, Plastic Pipe Cutters,Plastic Pipe Sharpener and Welding Socket (Die Plates) , additionally the following products have been recently added to our product range; Test Pressure Pumps, Butt Welding Machines.
